BB22XR

XR Series Balloon Envelope

Technical parameters

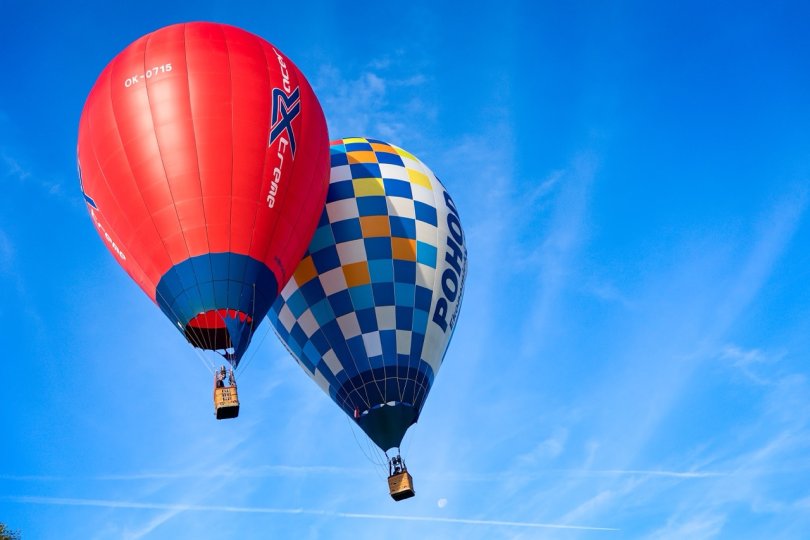

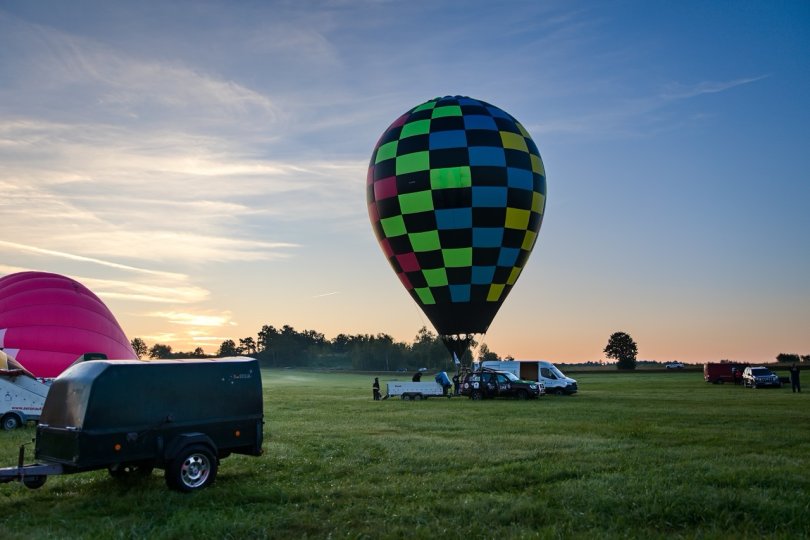

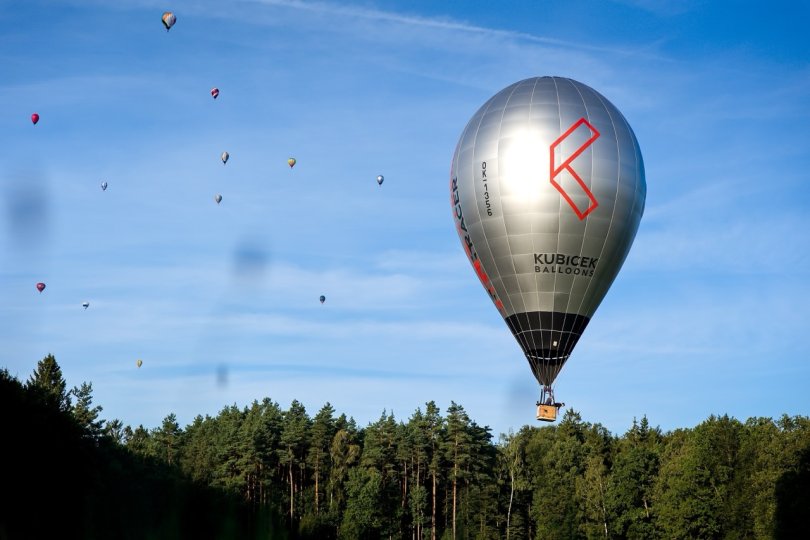

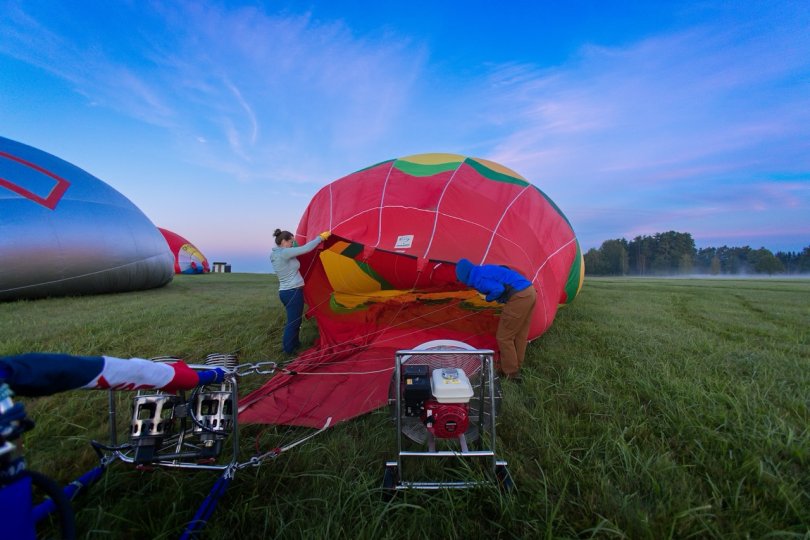

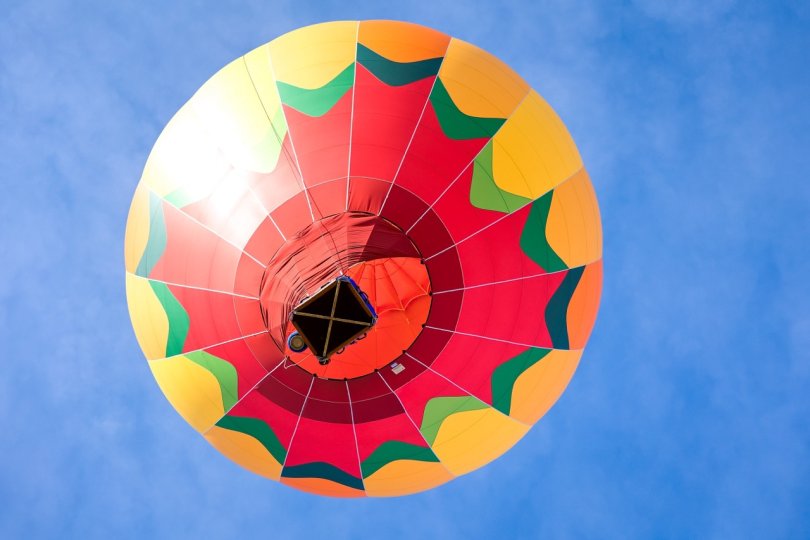

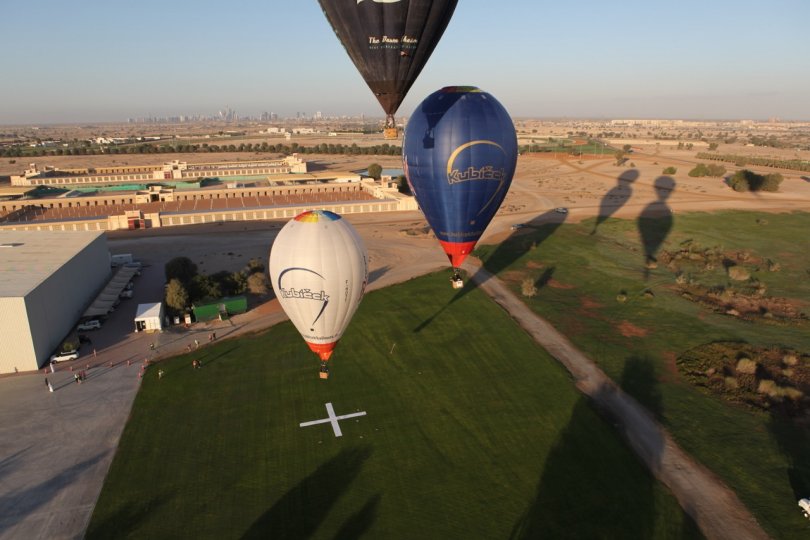

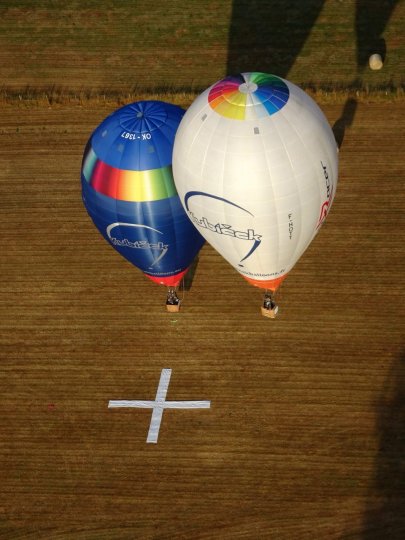

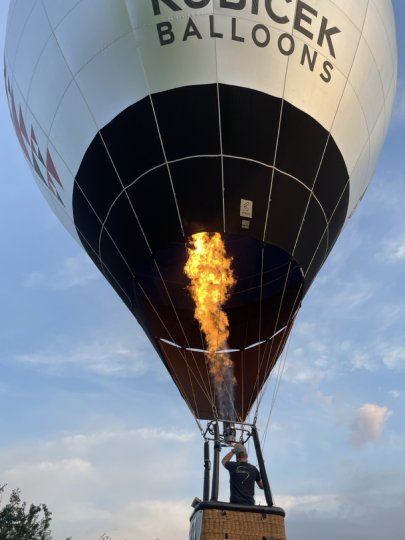

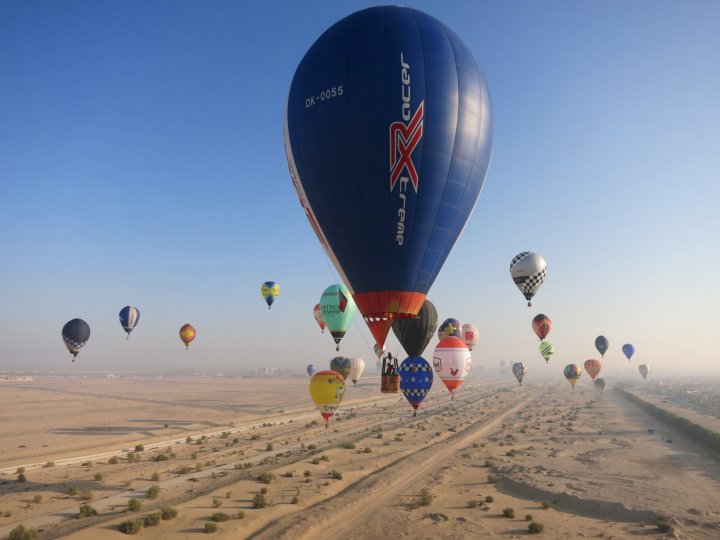

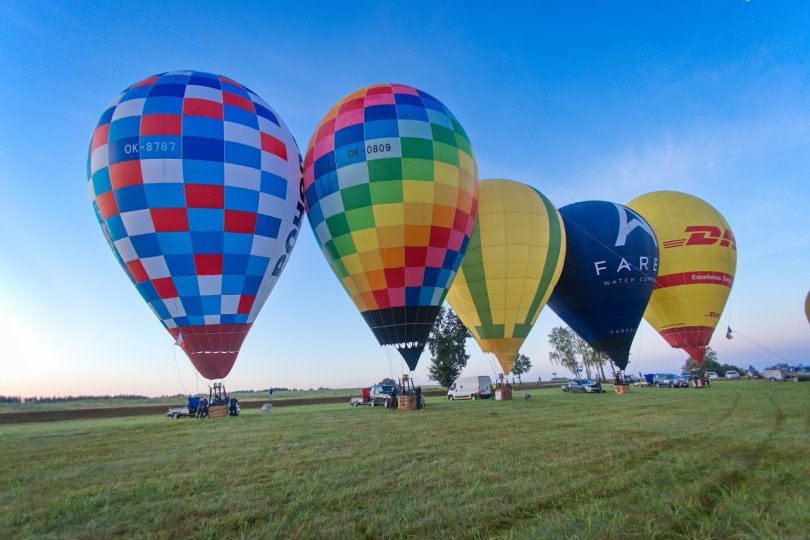

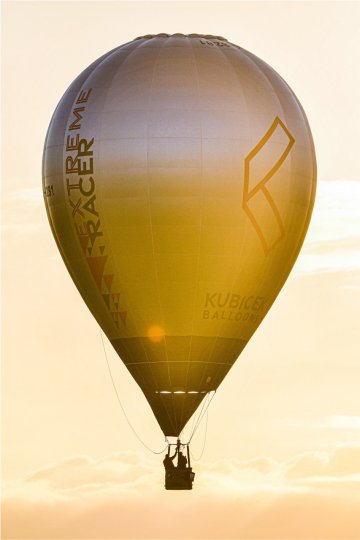

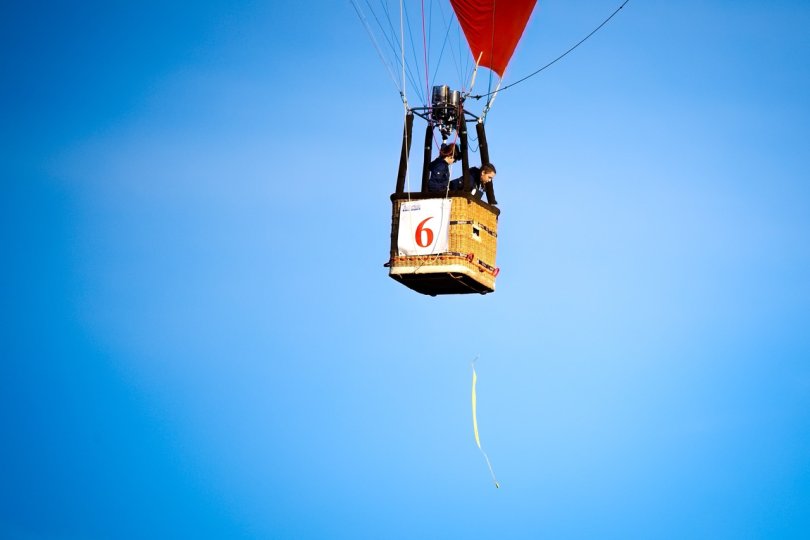

Gallery

Technical parameters

BB22XR

Series: XR Series
Model: BB22XR
Passengers: Pilot + 2
Volume: 2 200 m³ (77)
No. of gores: 24
Maximum Take-off Weight (MTOW): 780 kg / 1 719 lbs
Minimum Landing Weight (MLW): 300 kg / 661 lbs
Diameter: 14.6 m / 48 ft
Height: 21.0 m / 69 ft
In-price envelope fabric: Kubicek Polyester
In-price deflation system: Paralite
Typical envelope weight (rip stop fabric): 120 kg / 265 lbs
Typical weight (lightweight fabric): 90 kg / 198 lbs
Typical weight (Hyperlast fabric): 145 kg / 320 lbs
Approved baskets: K10S, K10C, K13S, K13 JAP, K13C, K13, K14, K17 JAP, K17, K19, K19L, K22, K23
Approved burners: Sirius single burner, Ignis Plus double burner for baskets K10-K19L, Ignis Plus double burner for K22 basket, Ignis Plus double burner for K23 basket

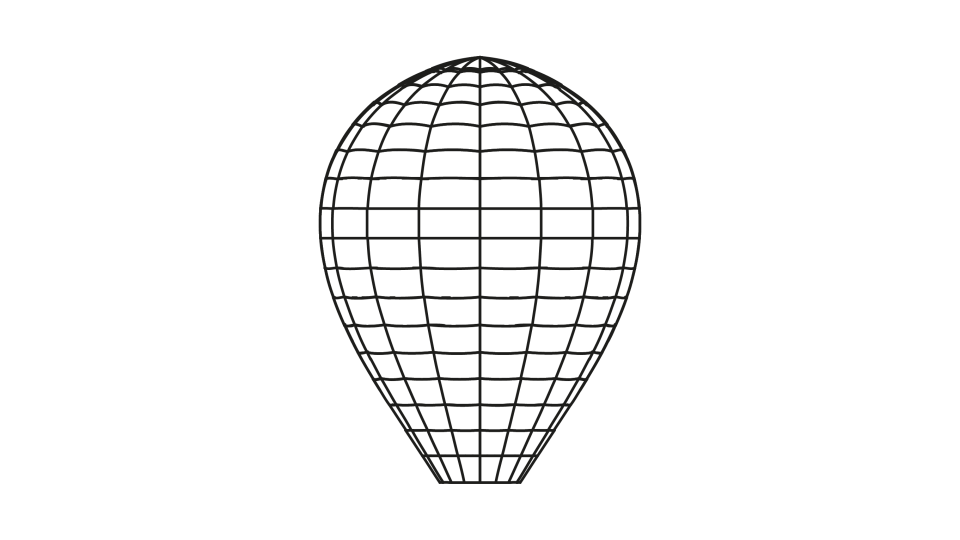

Ico-balloons-envelopeshapes-16X9-XR Racer - side

XR Series

The racer shape minimizes distortion during high-speed descents, while improving overall operation.

Ico-balloons_Terrain use recommendation 2

Kubicek Polyester Light

Save weight for private and special-shape envelopes.

Paralite

A special system made specificly for the eXtreme Racers and is particularly effective when landing at high wind speeds or when deflating in little or no wind.
