Origo Envelopes

Giving fabrics a second life

Lightweight and easy to handle, this simplified envelope design is ideal for pilots starting their journey.

Technical parameters

The Heart of the System

Origo 18

Origo envelopes are available in two sizes:

Origo 15 (15,000 m³ / 53 cu ft)
Origo 18 (18,000 m³ / 64 cu ft)

Both are designed as lightweight configurations with simplified construction. The reduced weight improves handling during packing, transport, and general operation.

The Origo envelope is manufactured from Kubíček Polyester Light fabric of second-grade quality. This material may include minor visual imperfections such as lines or specks, which do not affect structural integrity, safety, or flight performance.

By utilizing these materials, Origo supports efficient use of fabric that would otherwise be discarded, contributing to reduced material waste.

Envelope designs are defined by available fabric stock.

What to expect?

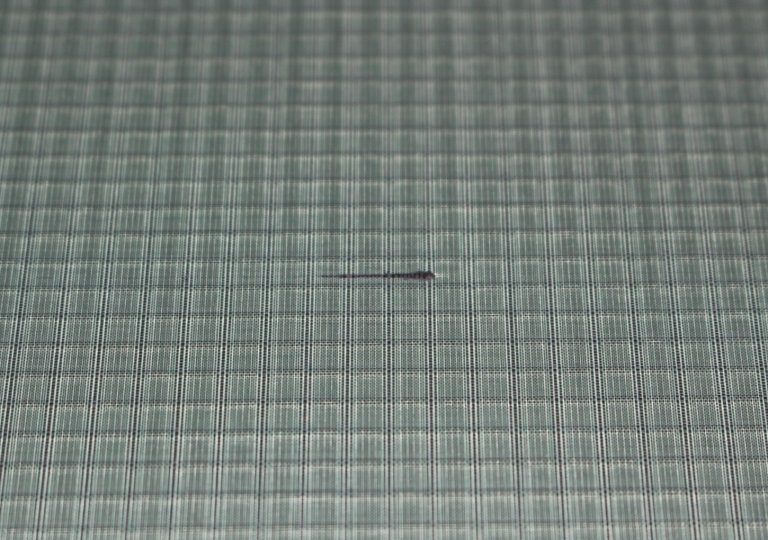

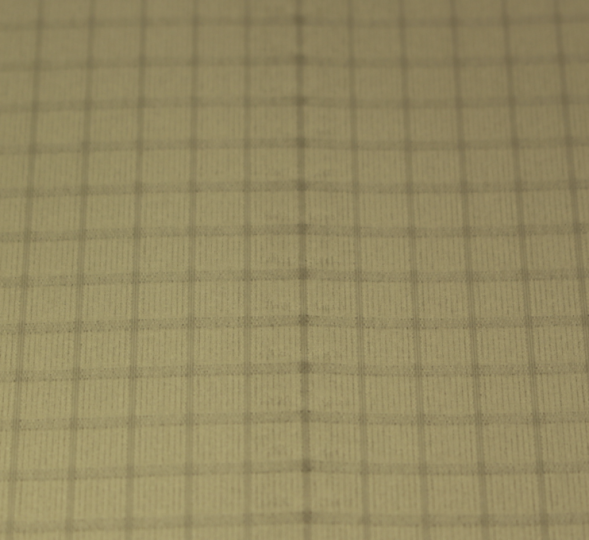

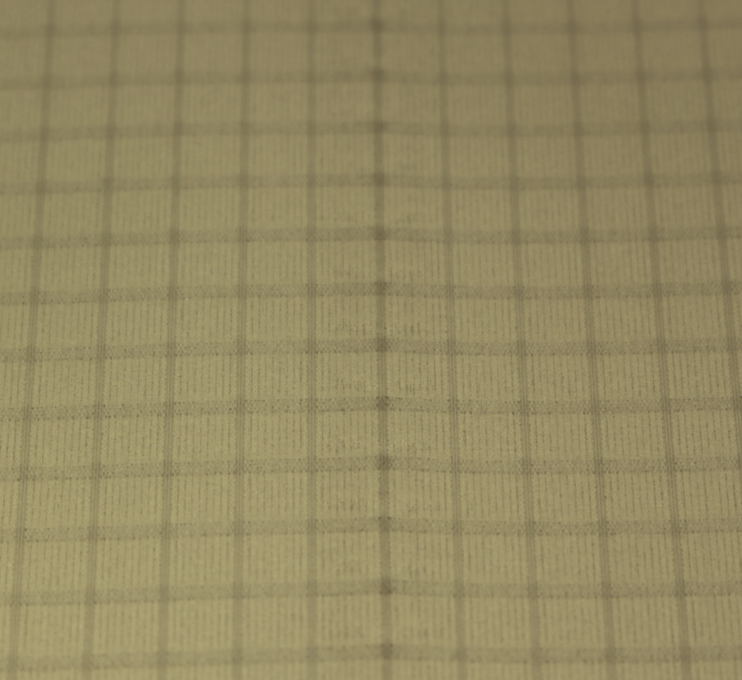

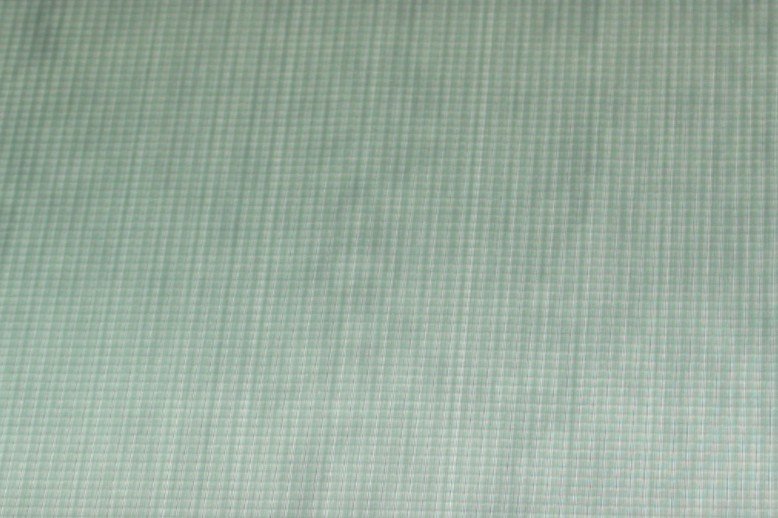

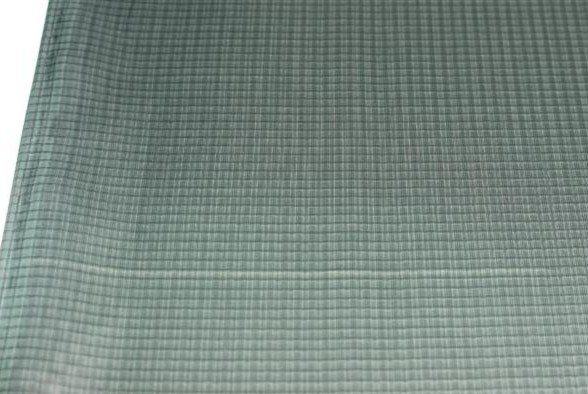

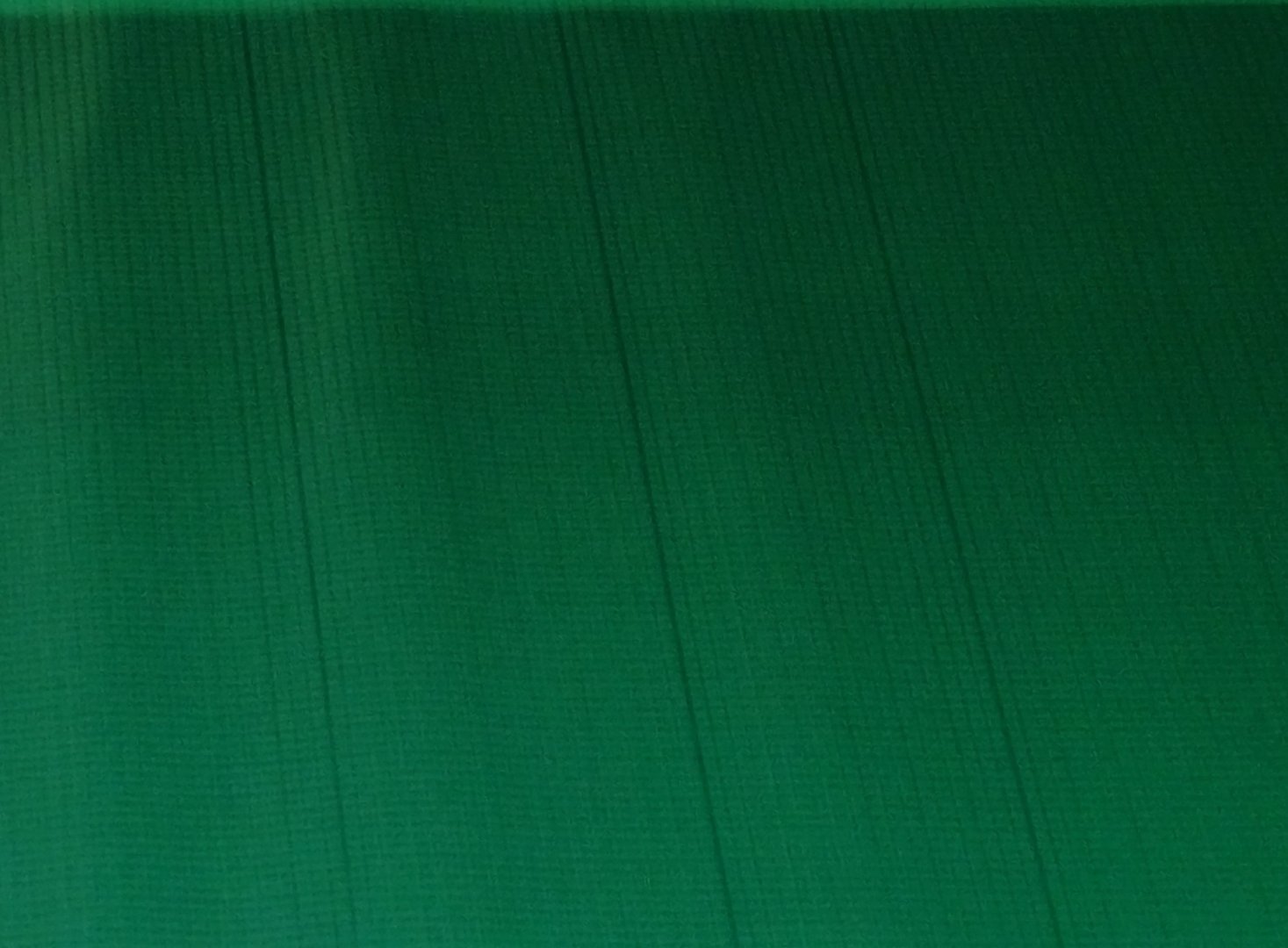

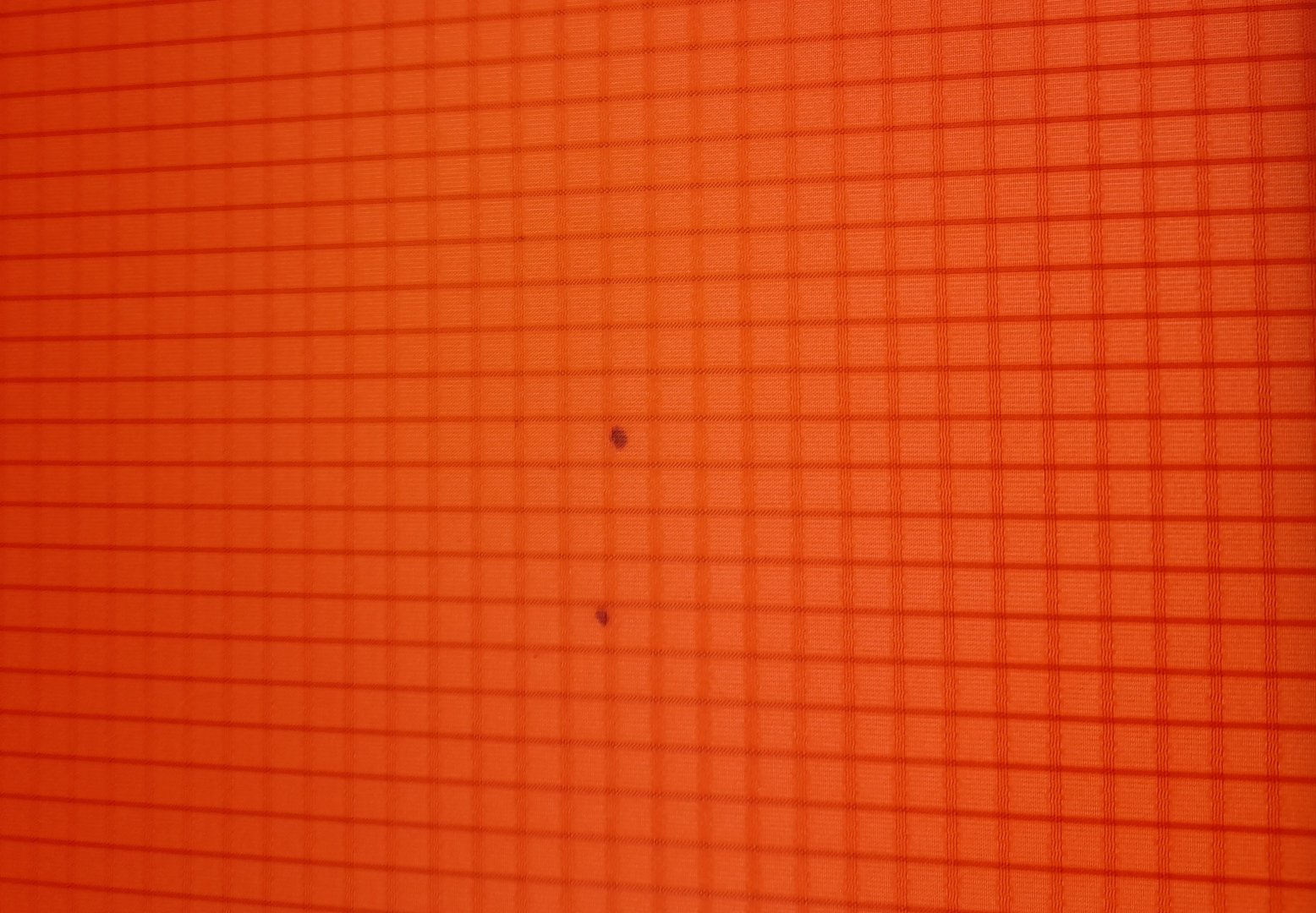

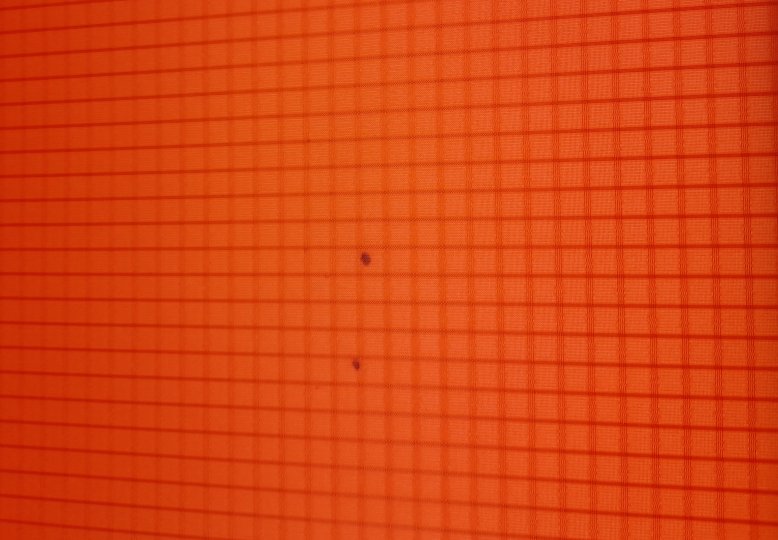

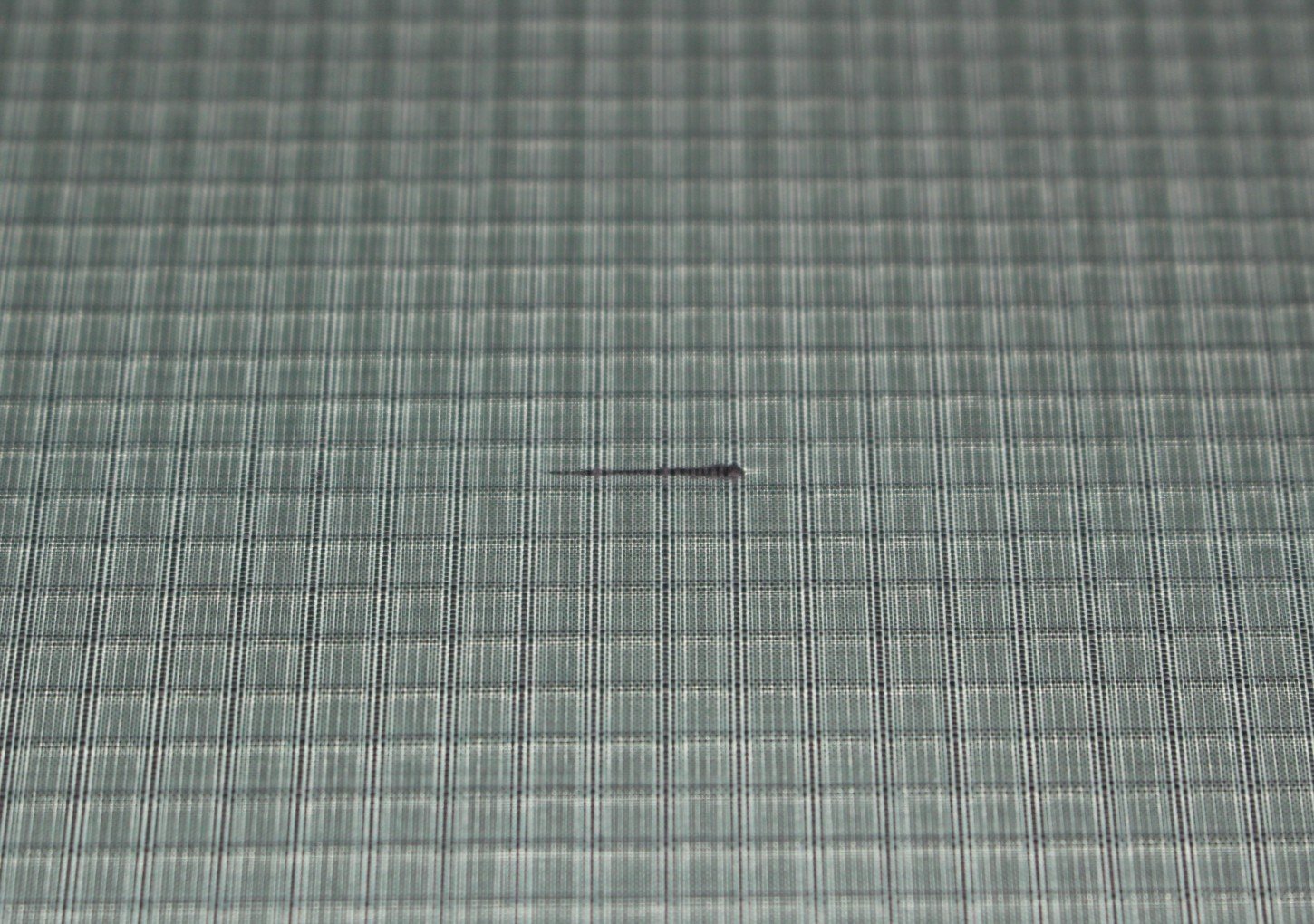

Examples of possible visual imperfections which may appear on Origo envelopes. These are generally only noticeable from up-close, and do not effect the structural integrity of the envelope,

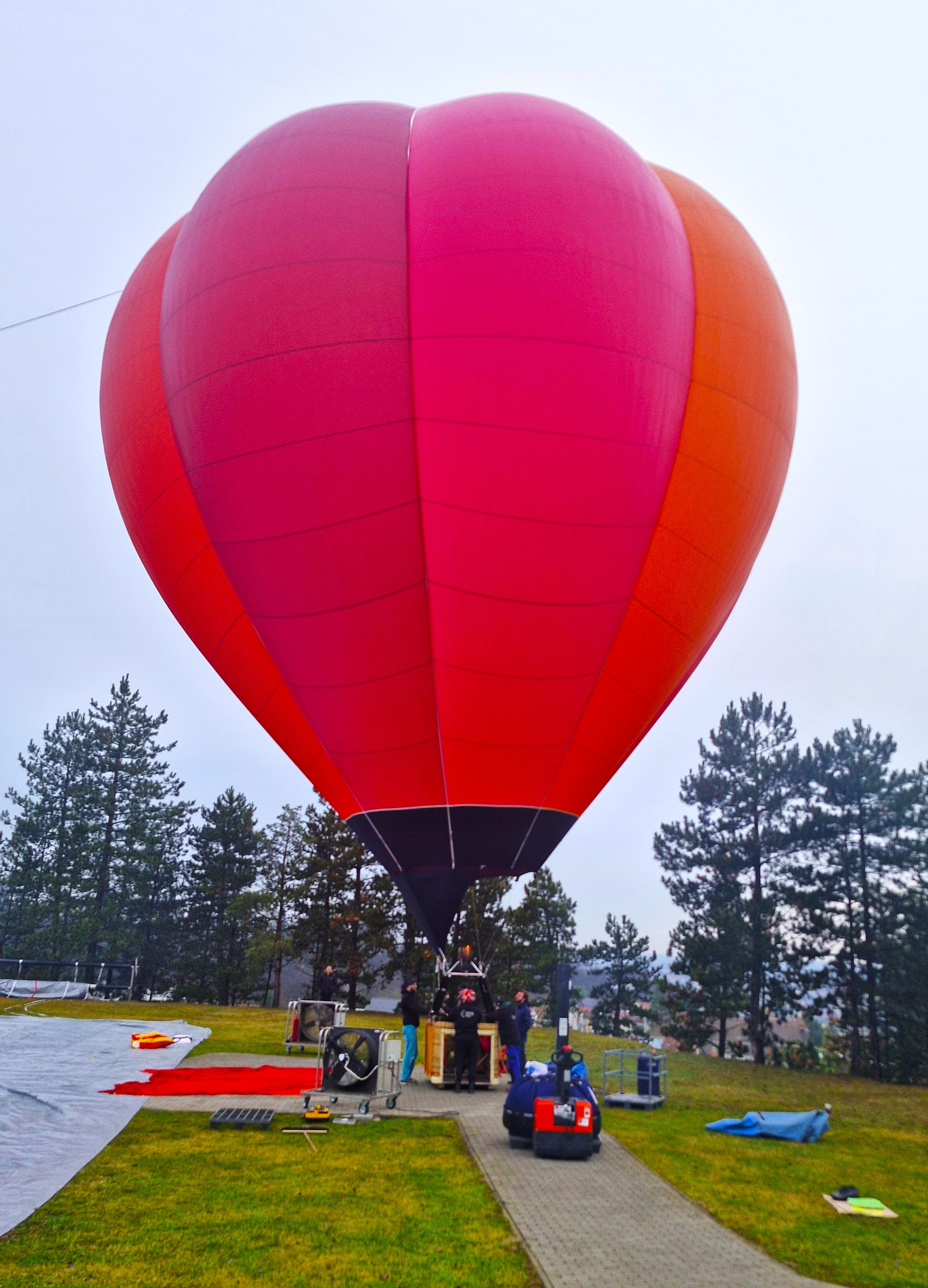

Origo 15 envelope

ORIGO15

Series: Origo
Model: ORIGO15
Passengers: Pilot + 1
Volume: 1 500 m³ (53)
No. of gores: 8
Maximum Take-off Weight (MTOW): 450 kg / 992 lbs
Minimum Landing Weight (MLW): 220 kg / 485 lbs
Diameter (at equator): 14.9 m / 49 ft
Height (mouth to top): 14.6 m / 48 ft
In-price envelope fabric: Kubicek Polyester Light
Recommended basket: ORIGO
Recommended burners: ORIGO + frame
Approved baskets: ORIGO, K10C, K10S, K13, K13C, K13S
Approved burners: ORIGO + frame

Origo 18 envelope

ORIGO18

Series: Origo
Model: ORIGO18
Passengers: Pilot + 1
Volume: 1 800 m³ (64)
No. of gores: 8
Maximum Take-off Weight (MTOW): 550 kg / 1 212 lbs
Minimum Landing Weight (MLW): 255 kg / 562 lbs
Diameter (at equator): 16.1 m / 53 ft
Height (mouth to top): 15.7 m / 52 ft
In-price envelope fabric: Kubicek Polyester Light
Recommended basket: ORIGO
Recommended burners: ORIGO + frame
Approved baskets: ORIGO, K10C, K10S, K13, K13C, K13S, K14, K17, K19, K19L, K22
Approved burners: ORIGO + frame

Origo envelope compatibility

	ORIGO	K10C	K10S	K13	K13C	K13S	K14	K17	K19	K19L	K22
ORIGO15
ORIGO18

Recommended combination

Allowed combination
